Thermal monocular Cyclone 325, ThermTec

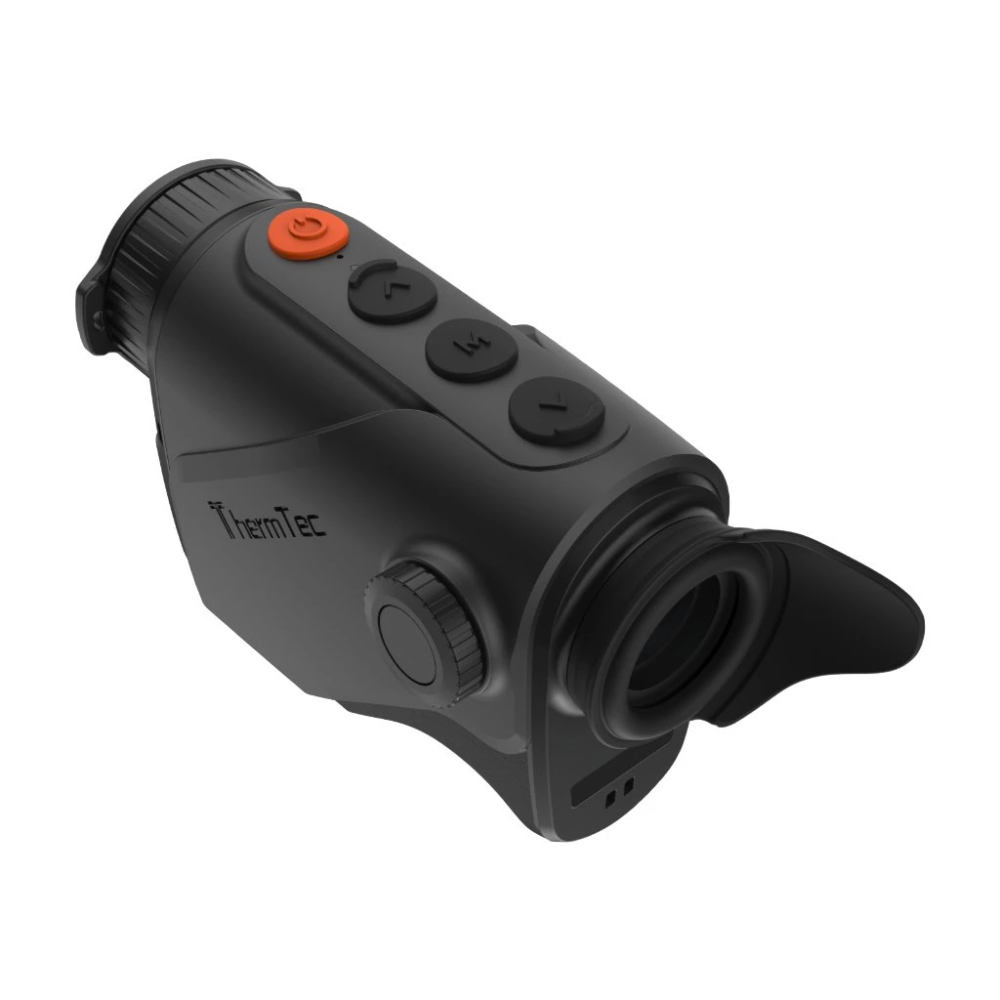

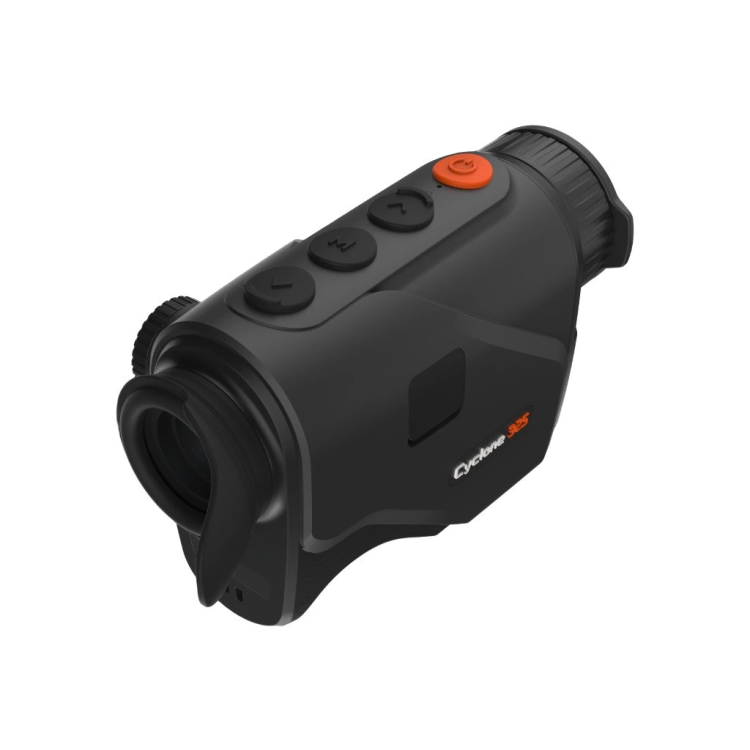

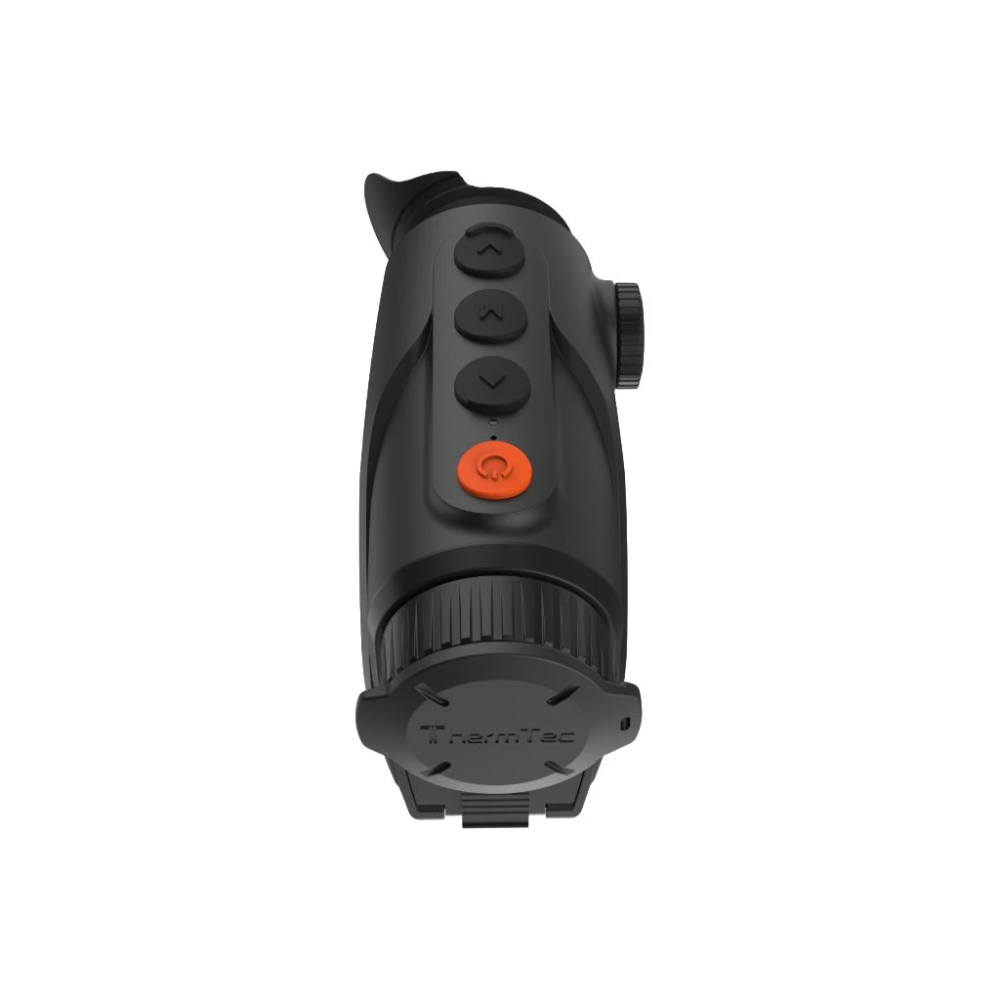

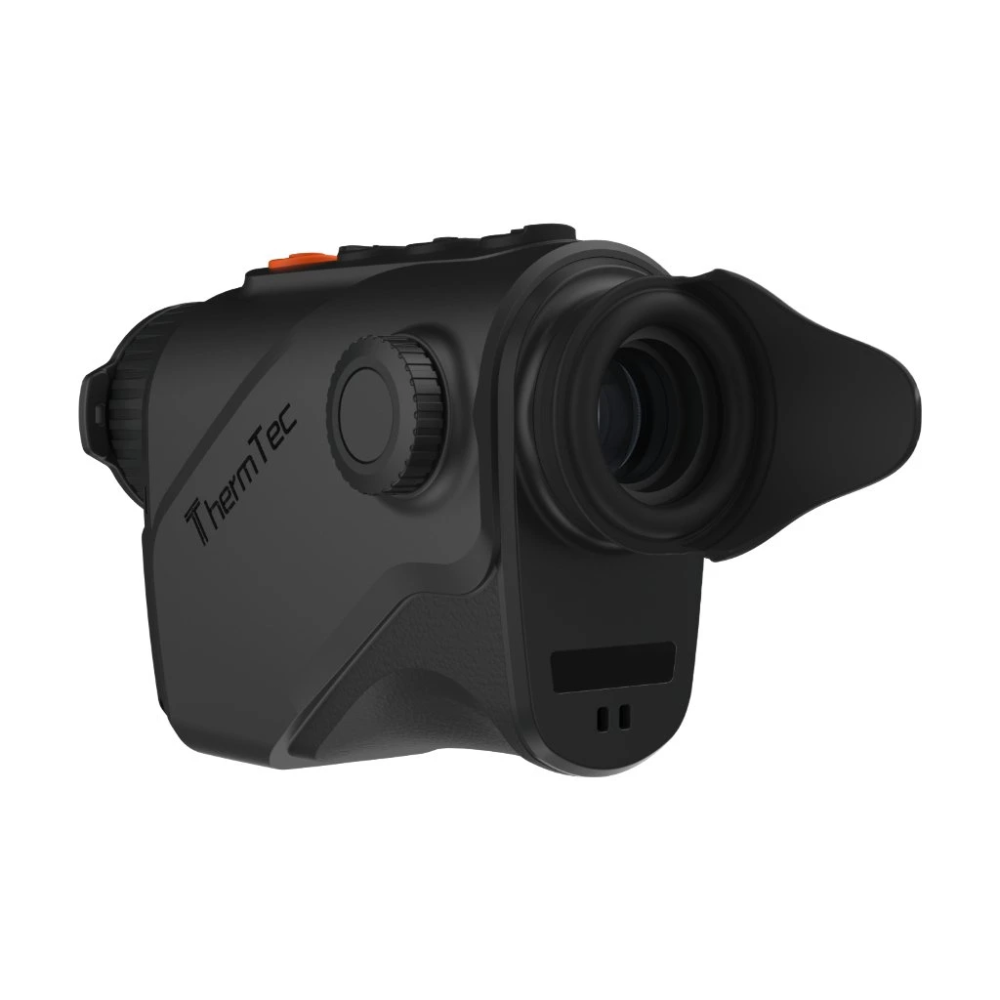

THERMTEC CYCLONE 325 THERMAL MONOCULAR

The Cyclone product line delivers top-tier performance in an ultra-lightweight and compact ergonomic design.

The Cyclone 325 thermal monocular will certainly impress you with its low weight and compact size, making it easy to carry wherever you go. It weighs only 261 grams and measures 13.5 × 7.6 × 5.4 cm. The controls are intuitive and user-friendly.

The Cyclone 325 features a modern sensor with a resolution of 384 × 288 px and a pixel size of 12 µm, contributing to high image accuracy and quality. The NETD (Noise Equivalent Temperature Difference) parameter of ≤ 20 mK ensures the ability to detect even the smallest temperature differences between objects, which is crucial for applications requiring high thermal sensitivity. A high-quality OLED display (1024 × 768 px), designed to be gentle on the eyes, further enhances the clarity and sharpness of the image.

The Cyclone 325 offers 2.4x optical magnification, ideal for mid-range observation. The digital zoom function allows additional magnification of up to 4x, giving users the flexibility to adjust their viewing distance. One of the key features of this device is its ability to detect objects up to 1,300 meters away, making it an excellent tool for long-distance observation. The built-in AI rangefinder allows for easy distance measurement to a target, enhancing accuracy and efficiency in use.

The built-in 32 GB memory provides ample storage for photos and videos. You can manage the files either directly on the device or via the ThermTec Outdoor app.

The monocular is powered by a removable 18650 Li-ion battery, offering up to 10 hours of continuous operation on a single charge - perfect for long missions or nature observations. The modern Type-C connector ensures fast and convenient charging.

The device meets the IP67 standard, ensuring dust and water resistance.

The Cyclone 325 supports Wi-Fi connectivity, allowing real-time image transmission to external devices such as smartphones or tablets. This feature is especially useful during group operations where multiple team members need to share the visual feed.

FEATURES OF THE THERMTEC CYCLONE 325 THERMAL MONOCULAR

• Wi-Fi connectivity
• Compact design
• Content viewing & management directly in the device or via app
• AI proportional rangefinder
• Sensor resolution: 384 × 288 px
• Thermal sensitivity: ≤ 20 mK
• Display resolution: 1024 × 768 px (OLED)
• Lens: 25 mm
• Detection range: 1,300 m
• Optical magnification: 2.4x
• Digital zoom: 1 - 4x
• Field of view: 10.5° × 7.9°
• Diopter adjustment: ±5D
• Photo & video recording capability
• Protection rating: IP67
• Built-in memory: 32 GB
• Operating temperature: -20°C to 50°C
• Battery type: 18650
• Battery life: up to 10 hours
• Weight: 261 g
• Dimensions: 135 × 76 × 54 mm

PACKAGE CONTENTS:

• ThermTec Cyclone 325 Thermal Monocular
• Battery charger
• 18650 Batteries (2x)
• USB data cable
• Optics cleaning cloth
• User manual
