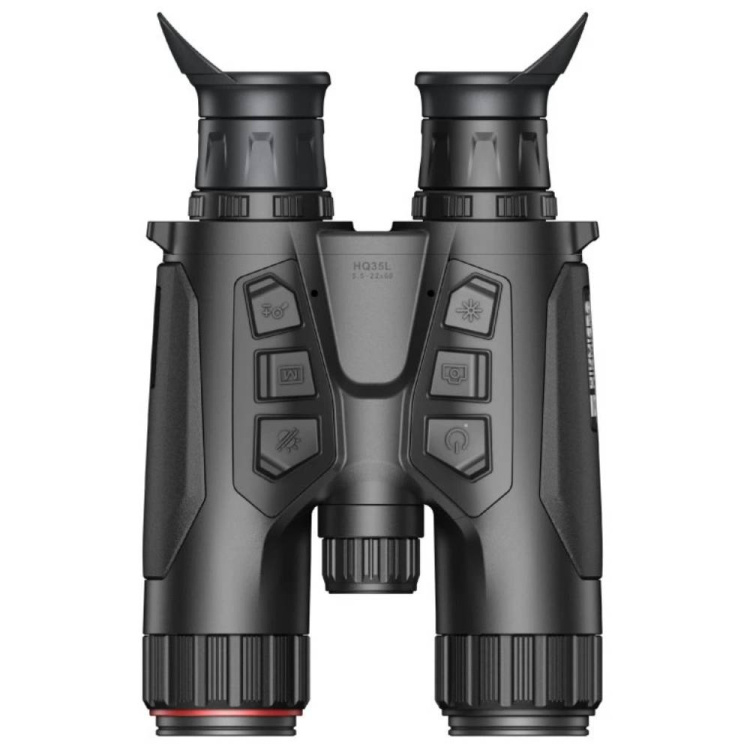

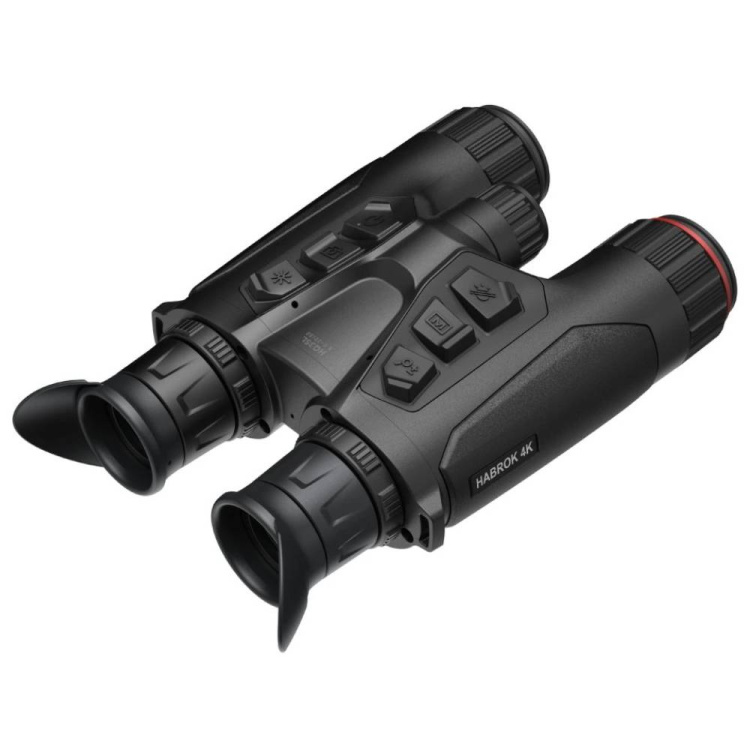

Thermal Fusion Binocular HABROK PRO HQ50L, Hikmicro

HABROK HQ35L 850 / 940 NM TERMOVISION FUSION BINOCULAR FROM HIKMICRO

The Hikmicro Habrok 4K HQ35L thermal imaging fusion binocular is the top of the range of multi-purpose observation instruments that combine thermal, night and day optical modes in one device. This innovative model is equipped with a 640×512 pixel resolution VOx thermal imaging sensor that uses advanced technology with 12μm pixel spacing and NETD sensitivity below 20 mK. This ensures excellent detection of temperature differences even in extremely difficult conditions. A thermal lens with F1.0 aperture allows a detection range of up to 1800 meters. The 12.5° × 10.1° field of view provides a wide overview of the area, and the minimum focusing distance is 3.5 meters. Digital magnification can be infinitely varied from 3x to 24x.

The device also includes a progressive scan CMOS optical sensor with an ultra-high resolution of 3840 × 2160 px (4K). This sensor ensures sharp and natural images for day and night viewing. With a minimum light sensitivity of 0.001 lux, the instrument is ideal for working in twilight and total darkness. The 31 mm focal length lens with F1.2 aperture provides a field of view of 13.9° × 7.8°, or 24.4 m × 13.6 m at a distance of 100 m. Optical magnification is 2.9x and digital zoom is up to 23.2x, with a minimum working distance of 3 metres. The Habrok 4K HQ35L also has a built-in intelligent infrared light with a wavelength of 850 nm and an adjustable beam angle of 7.6-11.5°, which greatly enhances visibility in total darkness.

The 0.49-inch OLED display with 1920×1080 px resolution delivers brilliant, high-contrast images. A wide range of colour palettes are available for thermal imaging - Black Hot, White Hot, Red Hot and Fusion - and optical modes Day, Night and Auto. The image can be customised manually by adjusting contrast, brightness and tone (cold/warm). The FFC (Flat Field Correction) function is available in Auto, Manual and External modes. Dioptric correction is possible in the range of -5D to +3D.

The device is IP67 rated, meaning full dust and water resistance, and can handle a temperature range of -30°C to +55°C. The weight of the binoculars is 780 grams without batteries, and the dimensions are 138.2 × 68.4 × 212.4 mm. The user can adjust the eyepiece spacing from 60-74 mm and the device is compatible with a 1/4"-20-UNC mounting adapter.

The Habrok HQ35L supports a variety of advanced features - video recording, photo capture, Hotspot (image sharing) audio recording, Hot Track (hottest spot in the image) and PIP (picture-in-picture) function. All content is stored in the built-in 64GB EMMC memory. Power is provided by a replaceable and rechargeable lithium-ion battery that provides a minimum of 6 hours of battery life (at 25°C with the hotspot turned off). The device can be powered via USB-C (5V, 2A) and also supports direct charging and external power.

Also included is a Class 1 laser rangefinder with a 905 nm wavelength that measures distances up to 1,000 meters with an accuracy of ±1 meter, with a minimum measurement distance of 10 meters. Overall, this is an extremely versatile and advanced device suitable for military, hunting, security and rescue operations where day, night and thermal imaging observations need to be combined in one instrument.

MAIN FEATURES OF THE HABROK HQ35L THERMOVISION FUSION BINOCULAR FROM HIKMICRO:

• Day/night, thermal imaging
• Sensor: 640 × 512 px
• Temperature sensitivity: ≤ 20 mK
• Frame rate: 50 Hz
• Day/night vision sensor: 3840 × 2160 px
• Display resolution: 1920 × 1080 px
• Wi-Fi
• Functions: PIP, Hot Track, integrated rangefinder up to 1000 m
• Detection: 1800 m (thermal) / 400 m (night vision)
• IR illumination: 940 nm
• Optical Magnification: 3x (thermal) and 2.9x (night vision)
• Photo Capture:
• Video Capture with Audio
• Color Palette: Black Hot, White Hot, Red Hot and Fusion (thermal)
• Degree of Protection: IP67
• Memory: built-in, 64 GB
• Battery: 1x Rechargeable Li-ion
• Battery Life: 6 hrs
• Weight: 780 g
• Dimensions: 138.2 mm × 68.4 mm × 212.4 mm
